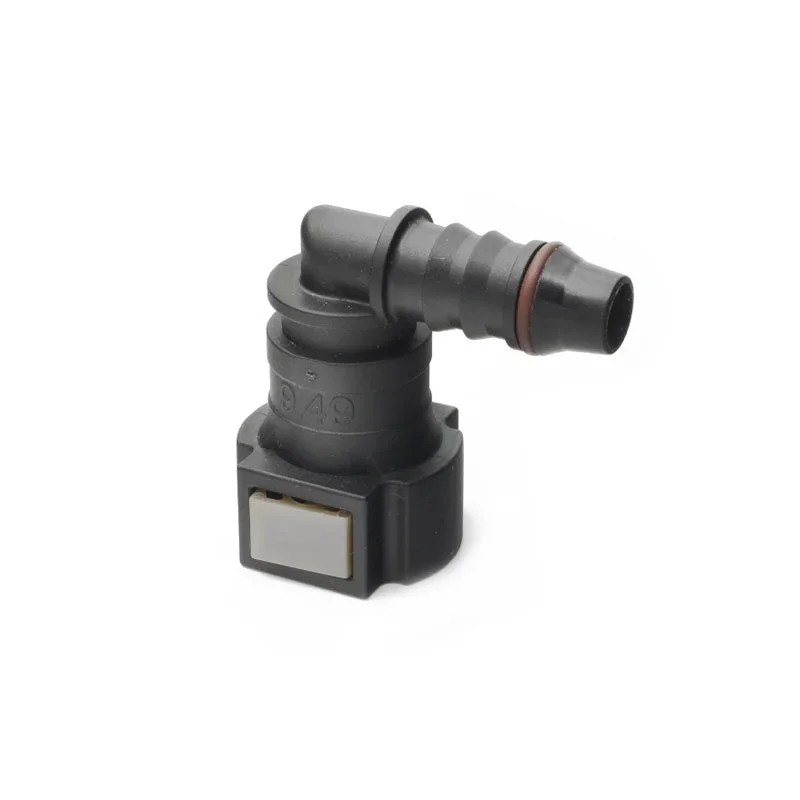

High flow SAE 9.49 Quick Connect coupling with Viton O-ring. SAE J2044 standard fittings for high flow and maximum functionality and durability. Safe for all fuels, including alcoholic fuels such as ethanol.

Used with the ethanol-safe in-tank and pre-assembled fuel lines. The SAE series is a standardized fuel line system, used in motorsports and sports car manufacturers. Enables easy installation and quick service possibilities thanks to its quick coupling.

Measurements :

• SAE 9.49 Quik Connect, female
• Version : 90°
• ID8 fuel hose connection, sealed male

Used on Nuke Performance Products:

• Fuel Surge Tanks for Internal Fuel Pumps
• CFC Unit, Competition Fuel Cell Unit

Available in a variety of sizes and with different SAE sizes, choose between different sizes when ordering. Available in 90° and 180°(straight) versions and in SAE Ø7.89 and SAE Ø9.49 female connection.

• Operating temperature range -40°C up to +115°C.
