Cabinet Cooling Package

Includes 1 temperature controller, 4 x 120 mm fans, and 2 x 160 mm ventilation grilles

A complete cooling solution for cabinets and enclosed installations, with automatic temperature-based fan control and low-noise operation.

Key Features

• Intelligent temperature controller with digital temperature display
• Automatic fan operation based on adjustable temperature settings
• Quiet cooling solution for cabinets, home theaters, and enclosures
• Four 120 mm fans with dual ball bearings
• Two 120 mm ventilation grilles
• Suitable for both intake and exhaust airflow configurations
• CNC-machined aluminum construction with black anodized finish
• CE-certified controller system

Temperature Controller Specifications

• Product size: 160 x 160 x 33 mm
• Fan size: 120 x 120 x 25 mm
• Voltage: 5.0 V
• Current: 0.3 A
• Speed settings: 1000 / 1200 / 1500 RPM
• Airflow: 33 / 44 / 55 CFM
• Maximum airflow: 52 CFM
• Noise level: 18.2 dBA
• Bearing type: Dual ball bearing
• Material: Aluminum plate and PBT fan blades
• Surface treatment: CNC-machined, anodized, and brushed black finish
• USB cable length: 1.8 m
• Operating temperature: -10°C to 70°C
• Certification: CE

Adjustable Temperature Settings

• Default working temperature: 32°C
• Default stop temperature: 23°C
• Press and hold WORK/+ for 3 seconds to adjust the working temperature
• Press and hold STOP/- for 3 seconds to adjust the stop temperature
• Settings are saved automatically after 3 seconds of inactivity

Fan Specifications

• Type: USB fan
• Bearing: Dual ball bearing
• Fan size: 120 x 120 x 25 mm
• Product size: 160 x 160 x 33 mm
• Plate material: Aluminum
• Blade material: PBT
• Aluminum plate thickness: 2 mm
• Voltage: 5.0 V
• Current: 0.3 A
• Rotation speed: 1000 / 1200 / 1500 RPM
• Airflow: 33 / 44 / 55 CFM
• Static pressure: 0.72 / 0.95 / 1.37 mmH2O
• Number of blades: 7
• USB cable length: 1.8 m
• Color: Black
• Ambient temperature: -10°C to 70°C

Ventilation Grille Specifications

• Frame material: Aluminum
• Mesh material: Iron
• Finish: Black anodized, brushed surface
• Size: 160 x 160 x 2 mm
• Mounting hole diameter: 5.3 mm
• Compatible with 120 mm PC fans
• Recommended cutout size: approx. 122 x 122 mm square or 114 mm round
• Can be used as intake or exhaust ventilation
• Suitable for cabinet and wall mounting

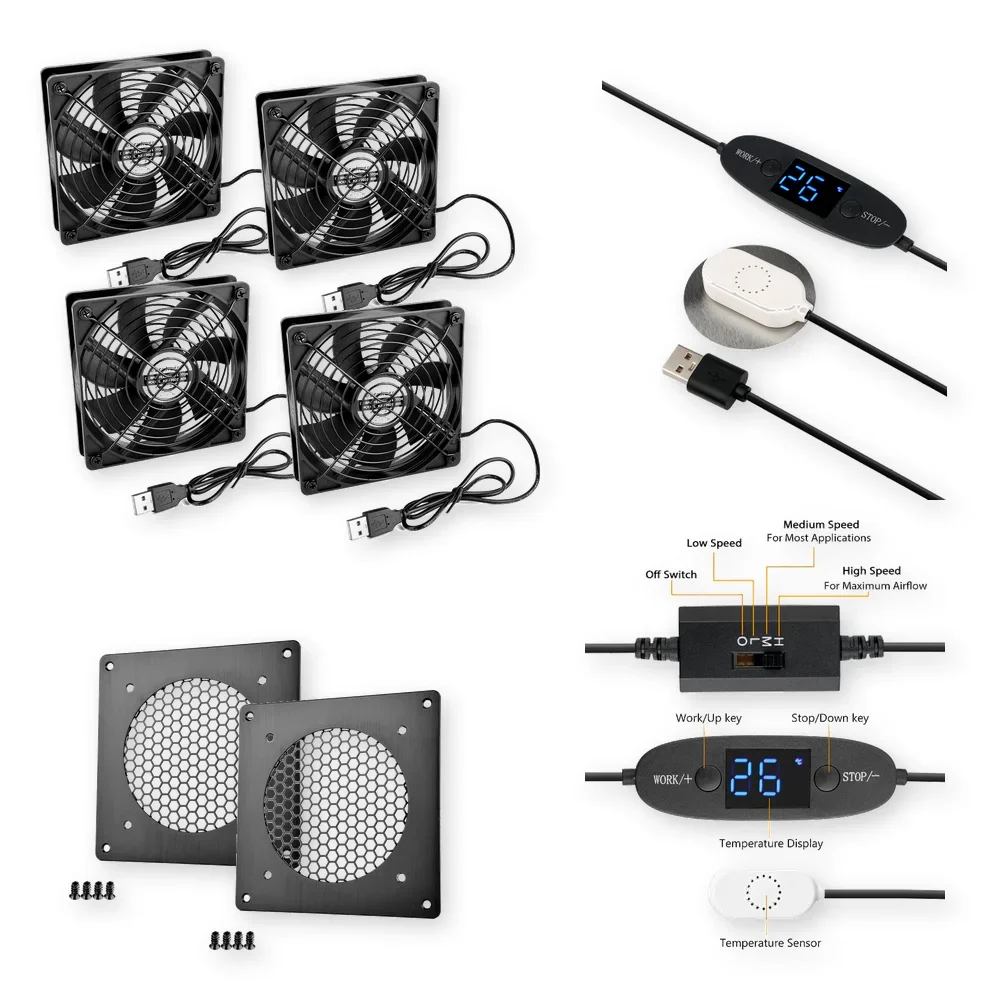

Package Contents

• 1 x temperature controller with integrated fan system
• 4 x 120 mm fans
• 2 x 120 mm ventilation grilles
